Baja Step Pool Umbrellas: How to Build Oversized, Anchored Shade.
A Baja step pool umbrella should do more than fit into a hole in the pool. The right system connects the sleeve, Anchor adapter, umbrella pole, canopy size, water depth, and seating layout into one stable, intentional installation for a Baja shelf, tanning ledge, sun shelf, pool step, deck, or patio.
Start Here
What is the best umbrella setup for a Baja step?
The best Baja step pool umbrella setup uses a straight center-pole umbrella connected to a properly selected pool sleeve or BajaMate Anchor adapter. Start with the mounting foundation, match the Anchor height and material to the water depth, then choose the canopy size around the shelf and seating—not the other way around.
“Baja step,” “Baja shelf,” “tanning ledge,” “sun shelf,” and “sun ledge” are regional names for the shallow platform built into many pools. These spaces are ideal for loungers, children’s play, cooling off, and conversation, but their original plastic umbrella sleeves are commonly short and narrow. That is why a large patio umbrella cannot simply be dropped into the existing opening and expected to perform like a designed in-pool system.
BajaMate approaches the installation as a connected system. The existing sleeve may remain in place if it is structurally usable. The Anchor pool sleeve adapter inserts into that sleeve and creates a larger, raised mounting point above the finished surface. For a new pool, remodel, or damaged sleeve, a Foundation metal pool sleeve creates a stronger starting point. The selected umbrella then fits into the Anchor rather than relying on a bulky freestanding base in the water.
The BajaMate Architecture
Build the shade from the pool upward.
Most umbrella shopping starts with color and canopy width. For a Baja shelf, the more important sequence starts below the waterline. The sleeve determines the connection. The Anchor determines height, pole capacity, and support above the surface. The umbrella determines shade coverage and the visual character of the finished space.
Foundation
Confirm the pool sleeve.
Inspect the existing builder-installed plastic sleeve, or select a metal Foundation sleeve for new construction, a remodel, or a damaged mounting point.
Anchor
Raise and upsize the connection.
The lower pin enters the sleeve while the plate and 18-inch or 26-inch tube create a larger, centered mounting point above the shelf or deck.
Shade
Add the right canopy.
Pair the mounting system with a compatible straight center-pole umbrella sized for the shelf, chairs, table, sun path, clearances, and wind exposure.
Why this differs from a weighted base
A freestanding base uses mass to counter the leverage of the canopy. On a shallow shelf, that can occupy valuable floor space, interrupt circulation, and create a large object around chairs and feet. A sleeve-anchored system transfers the connection into a dedicated mounting point and keeps the visible installation cleaner. It does not make an open umbrella windproof, but it creates a more purposeful foundation than placing a patio base in the water.
Sleeve Selection
Use the existing sleeve—or replace it when the foundation is compromised.
The correct path depends on the condition of the sleeve already in the pool. BajaMate Anchor adapters are specifically designed to fit into common builder-installed plastic pool umbrella sleeves and strengthen the mounting point above them. The metal sleeve itself does not slide into the plastic sleeve. It is a separate replacement or new-construction foundation.
| Starting Condition | Recommended Path | Why |
|---|---|---|
| Usable existing plastic sleeve | Adapt | Keep the sleeve in place and insert a compatible Anchor adapter to create a larger, raised umbrella connection above the finished surface. |
| Cracked, crushed, swollen, angled, or unreliable sleeve | Replace | Evaluate removal and replacement with a metal Foundation sleeve during a remodel or targeted repair before adding the Anchor and umbrella. |
| New pool or major remodel | Plan Ahead | Specify the sleeve location, material, depth, orientation, surrounding finish, Anchor height, and future accessory use before the surface is completed. |

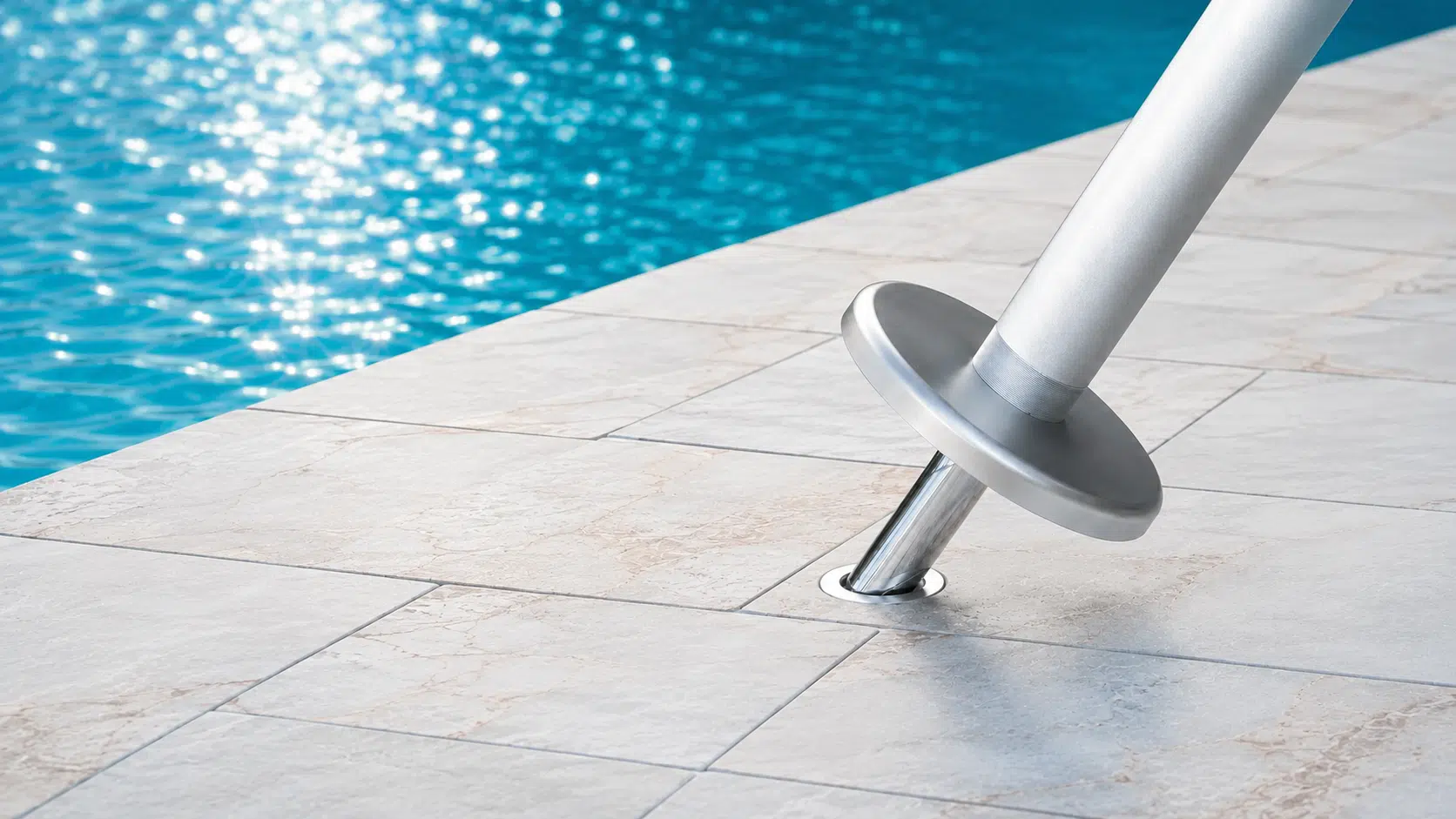

| Deck or patio without a pool sleeve | Dry-Side | Use a compatible deck sleeve or dry-side mounting solution sized for the selected Anchor and straight umbrella pole. |
Steel Sleeves Explained with Randy
Randy explains why short plastic sleeves can become the weak point in an otherwise premium pool, how a metal sleeve changes the long-term foundation, and when a replacement sleeve makes more sense than adapting the original opening. The written guidance above preserves the key decision points for visitors and search systems that do not watch the video.
Canopy Selection
Choose 10, 12, or 14 feet around the space you want to shade.
Canopy diameter describes the umbrella, not the exact shadow on the water. Actual shade changes throughout the day with the sun angle, umbrella height, shelf orientation, latitude, season, and nearby structures. Start by mapping the chairs, table, walking space, and time of day when the shelf is used most often.
Focused Shade
Compact Baja shelves.
A refined choice for a smaller shelf, a single lounge zone, a compact table arrangement, or locations where nearby walls and landscaping limit canopy clearance.
Versatile Coverage
Two loungers and gathering.
A strong all-around size for broader Baja shelves, paired chaises, an in-pool table, or family seating that needs meaningful shade without the scale of the largest canopy.
Maximum Coverage
Large entertaining zones.
Designed for expansive shelves, decks, patios, and entertaining layouts where maximum shade is the priority and the site can accommodate the added canopy span and leverage.
Do not size the umbrella from shelf width alone
The umbrella should cover the occupied zone without colliding with the pool edge, house, fence, trees, lighting, rooflines, or another umbrella. Confirm the full open diameter, rib clearance, crank access, lower-pole length, and removal path. Larger canopies create more leverage, so the sleeve condition, Anchor configuration, and exposure must be evaluated together.
Anchor Selection
Match the Anchor height and material to the installation.
Shallower Shelf
18-Inch Anchor
Generally best for a single-step-down Baja shelf, shallower water, or a location that requires less added mounting height above the original sleeve.
Deeper Shelf
26-Inch Anchor
Generally best for a two-step-down Baja shelf, deeper water, or an installation that needs additional height to position the umbrella connection appropriately.
The 18-inch and 26-inch dimensions describe the Anchor tube and cap assembly. They do not describe the finished Gather tabletop height or the overall height of the installed umbrella. Water depth and seating position should be measured at the exact sleeve location.
316 stainless steel or aluminum?
| Material | Best Use | Exposure Guidance |
|---|---|---|
| 316 Stainless Steel | Baja shelves, tanning ledges, submerged pool locations, salt systems, coastal settings, decks, and patios. | The preferred BajaMate material for full-time in-pool installation when cleaned and maintained appropriately. |
| Aluminum | Pool decks, patios, hardscapes, landscapes, and installations where lighter handling is valuable. | Water-resistant for temporary exposure, but it should be removed rather than left continuously submerged. |
Umbrella-pole compatibility
Compatible Anchor configurations support round, straight umbrella poles up to approximately 2.25 inches in outside diameter. Reducer rings help center several common pole diameters, but the actual lower pole must be measured before ordering a third-party umbrella. Square poles, cross bases, and offset or cantilever assemblies are not interchangeable with a straight center-pole system.
Layout & Installation
Plan the experience before selecting the hardware.
A luxury installation feels effortless because the practical decisions were made early. The umbrella should shade the occupied zone, preserve the view, allow comfortable movement, and be easy to open, close, remove, clean, and store. Those details matter as much as canopy color.
Standard umbrella or Solar + USB-C Charging?
BajaMate’s current umbrella configuration uses a straight center pole without tilt. Select umbrellas may be ordered with the optional Solar + USB-C Charging upgrade, which adds convenient device charging at the umbrella tube. Charging performance depends on available sunlight, battery condition, device requirements, connection quality, and environmental conditions.
Wind, operation, and removal
No large outdoor umbrella should be treated as windproof. Close and secure the canopy when conditions become gusty, before storms, when the pool is unattended, and whenever the manufacturer’s operating guidance calls for closure. Do not rely on an Anchor, steel sleeve, or heavy pole to protect an open canopy from severe weather. A well-designed mounting system improves the connection; responsible operation protects the umbrella, pool finish, surrounding property, and people nearby.
Care for the frame, Anchor, and canopy
Rinse splash-zone components after heavy use, remove accumulated pool chemistry and debris, and clean with mild soap and a soft cloth. Avoid harsh abrasives and unapproved chemicals. Inspect reducer rings, tightening components, fasteners, pins, and the sleeve opening seasonally. Allow the canopy to dry before extended storage, and follow the fabric manufacturer’s cleaning instructions for stains and deeper maintenance.
Common Questions
Baja step pool umbrella questions.
These answers cover the sleeve, Anchor, umbrella size, material, charging option, installation, and ongoing operation.
What is a Baja step pool umbrella?
It is an umbrella configured for a shallow pool platform commonly called a Baja step, Baja shelf, tanning ledge, sun shelf, or sun ledge. The preferred configuration uses a straight center pole connected to a dedicated sleeve or adapter rather than a freestanding patio base placed in the water.
Can BajaMate use the plastic sleeve already in my pool?
Often, yes. BajaMate Anchor adapters are designed to insert into common builder-installed plastic pool umbrella sleeves and create a larger, raised mounting point above them. The sleeve must still be measured and evaluated for damage, swelling, debris, angle, and usable depth.
Does a BajaMate steel sleeve slide into the plastic sleeve?
No. The Anchor adapter pin can slide into a compatible existing plastic sleeve. A metal Foundation sleeve is a separate new-construction or replacement component installed in the pool or deck structure.
Should I choose a 10-foot, 12-foot, or 14-foot umbrella?
Choose based on the occupied zone, shelf dimensions, sun path, surrounding clearances, and exposure. A 10-foot umbrella suits more compact layouts, 12 feet provides versatile coverage for paired loungers or a table, and 14 feet is intended for large shelves, decks, and entertaining zones that can accommodate the added span and leverage.
What is the difference between the 18-inch and 26-inch Anchor?
The 18-inch Anchor is generally best for a shallower, single-step-down Baja shelf. The 26-inch Anchor is generally best for a deeper, two-step-down shelf where additional mounting height is needed. Measure water depth and seating height at the exact sleeve location before selecting.
Can an aluminum Anchor remain underwater?
Aluminum is intended primarily for dry-side installations and temporary water exposure. It should be removed rather than left continuously submerged. Choose 316 stainless steel for a full-time in-pool installation.
What umbrella-pole diameter fits a BajaMate Anchor?
Compatible Anchor configurations support round, straight umbrella poles up to approximately 2.25 inches in outside diameter. Measure the actual lower pole and confirm the correct reducer-ring and tightening-cap configuration before ordering.
Do BajaMate umbrellas tilt?
No. BajaMate’s current Shade umbrellas use a standard straight center-pole configuration. Shade placement is planned through sleeve location, Anchor height, canopy diameter, umbrella orientation, and the sun path rather than a tilt mechanism.
Is Solar + USB-C Charging available?
Select BajaMate umbrellas are available with an optional Solar + USB-C Charging upgrade. Performance varies with sunlight, battery condition, device requirements, connection quality, and environmental conditions.
Can I leave a large umbrella open in the wind?
No large outdoor umbrella should be considered windproof. Close and secure the canopy during gusty conditions, storms, and unattended periods, and follow the operating guidance supplied with the umbrella and mounting system.
What information should I send BajaMate for sizing help?
Send the sleeve opening, usable sleeve depth, water depth, sleeve condition, preferred umbrella size, seating layout, and clear photos of the opening, waterline, Baja shelf, deck, nearby structures, and intended shade area.
Continue Planning
Choose the next part of the BajaMate system.
Existing Sleeve Upgrade
Anchor Pool Sleeve Adapters
Compare 18-inch and 26-inch Anchor configurations in aluminum and marine-grade 316 stainless steel.
Explore AnchorsNew or Replacement Foundation
Foundation Pool Sleeves
Plan a metal sleeve for new construction, pool remodeling, deck installations, or replacement of a damaged plastic sleeve.
Explore SleevesOversized Shade
Shade Pool Umbrellas
Explore 10-foot, 12-foot, and 14-foot straight center-pole umbrellas for Baja shelves, decks, patios, and outdoor entertaining.
Explore ShadeAdd Table Space
Gather In-Pool Tables
Transform the same Anchor foundation into an in-pool destination for drinks, snacks, conversation, and relaxation.
Explore GatherBuild Shade From the Foundation Up
Ready to plan your Baja step pool umbrella?
Confirm the sleeve, choose the Anchor height and material, then select the canopy around the shelf, seating, clearances, and way your family uses the pool.
