BajaMate Sleeve-Mounted Shade Guide
In-Pool Umbrellas for Sun Shelves & Baja Shelves.
An in-pool umbrella for a sun shelf or Baja shelf provides shade without requiring a bulky freestanding base on the ledge. BajaMate sleeve-mounted systems use the pool's existing umbrella sleeve—or a BajaMate Anchor—to create a secure connection for larger umbrellas and oversized shade.
Direct Answer
What is a sleeve-mounted in-pool umbrella system?
A sleeve-mounted in-pool umbrella uses an embedded pool sleeve as the foundation. A smaller straight-pole umbrella may fit the sleeve directly. When more shade, a larger pole, or a raised mounting point is needed, a BajaMate Anchor inserts into a compatible sleeve and creates the stronger, larger connection above it for the umbrella and optional accessories.
That distinction matters on a Baja shelf, sun shelf, tanning ledge, or pool step because the mounting location is already part of the pool. You are not choosing between every type of umbrella base on the market here. This page focuses specifically on using the sleeve that is already in the pool, or installing a purpose-built sleeve, to create a clean in-pool shade system.
Comparing floating tables, weighted bases, and other freestanding approaches? Use the broader Sun Shelf & Baja Shelf Pool Umbrella Buying Guide instead.
The Most Important Comparison
Why use an Anchor if a smaller umbrella already fits the pool sleeve?
Sometimes the simplest solution is exactly that: a smaller umbrella with a straight lower pole that fits the existing builder-installed pool sleeve. If the sleeve is structurally usable, the pole fits correctly, and the shade footprint is enough for the space, a direct-fit umbrella can be a clean, uncomplicated choice.
The limitation is that the original sleeve controls the pole diameter, insertion depth, finished height, and practical canopy scale. When the goal changes from small localized shade to a larger resort-style canopy over loungers, a Gather table, or a broader Baja shelf, the mounting connection often needs to change with it.
| System | Smaller Umbrella Directly in Sleeve | BajaMate Anchor + Oversized Umbrella |
|---|---|---|
| Mounting | Straight umbrella pole inserts directly into the existing sleeve. | Anchor inserts into a compatible sleeve and creates a raised umbrella connection above it. |
| Best Use | Compact shade, a single lounger, small seating zone, or a pool where the existing sleeve already matches the umbrella. | Broader shade over paired loungers, tables, larger shelves, and entertainment zones. |
| Pole Size | Limited by the actual inside opening and usable depth of the existing sleeve. | Compatible straight round umbrella poles up to 2.00″ outside diameter, depending on Anchor configuration. |
| Finished Height | Determined largely by the original sleeve depth and the umbrella’s lower pole. | 18″ and 26″ Anchor options help raise the connection for different shelf depths. |
| Canopy Scale | Usually best when the smaller canopy already provides enough useful shade. | Built around larger 10′, 12′, and 14′ BajaMate shade configurations where site conditions allow. |
| Accessories | Primarily the umbrella itself. | Creates the shared raised mounting point used by compatible BajaMate umbrella and Gather table configurations. |
Sleeve → Anchor → Shade
How does the BajaMate sleeve-mounted umbrella system work?
BajaMate separates the embedded foundation from the removable components above it. That lets a usable builder-installed sleeve remain in the pool while the Anchor creates a larger mounting point above the sleeve for the finished umbrella system.
Foundation
Start with the sleeve.
Use a compatible existing sleeve when it is structurally sound, or install a BajaMate Foundation sleeve for new construction, remodeling, or replacement.
Anchor
Raise and upsize the connection.
The BajaMate Anchor inserts into the sleeve and creates a larger raised mounting point above it. Reducer rings help center compatible smaller poles.
Shade
Add the umbrella sized for the occupied zone.
Select the canopy around loungers, table space, sleeve position, sun path, clearances, water depth, and the way the shelf is actually used.
See the System Installed
Watch the sleeve, Anchor and Gather connection come together.
This installation shows the raised BajaMate connection used above an existing sleeve and how the same system can support the Gather table.
- The embedded sleeve stays below as the foundation.
- The Anchor creates the removable raised connection.
- The umbrella and table are selected around that mounting point.
Keep It or Replace It?
Can I use the pool umbrella sleeve that is already installed?
Often, yes. A builder-installed plastic sleeve does not automatically need to be removed just because you want a larger umbrella. If the sleeve is compatible, structurally usable, properly supported, and has enough usable depth, it can remain as the embedded foundation for a BajaMate Anchor.
Adapt
Keep a good sleeve in place.
Measure the opening and usable depth, inspect its condition, and use the correct Anchor when the existing sleeve remains a sound mounting foundation.
Replace
Fix the foundation when the sleeve has failed.
Cracked, crushed, loose, badly recessed, deteriorated, or severely misaligned sleeves should be addressed before adding a larger umbrella system above them.
Replacement Foundation
When replacement is needed, build the mounting point for long-term use.
BajaMate Foundation sleeves provide a purpose-built metal mounting point for new pools, remodels, and replacement projects. For full-time submerged pool installations, use 316 stainless steel rather than aluminum.
Explore Foundation SleevesNeed help identifying what is already in the pool? Use the Pool Umbrella Sleeve Guide for measurements, condition checks, and replacement guidance.
Mounting Height
18-inch or 26-inch Anchor: which one fits the shelf depth?
The Anchor length is part of the finished umbrella geometry. The goal is to create the raised connection at a useful height above the submerged sleeve—not simply to choose the longest Anchor available.
Shallower Baja Shelf
18-Inch Anchor
Generally the better starting point for a single-step-down Baja shelf or shallower installation where less additional mounting height is required.
Deeper Baja Shelf
26-Inch Anchor
Generally the better starting point for a two-step-down Baja shelf or deeper water where additional mounting height is needed above the sleeve.
Build the Shade Around the Space
10-foot, 12-foot or 14-foot umbrella: how much sleeve-mounted shade do you need?
Once the mounting point is settled, size the canopy around the occupied zone. Mark the sleeve location, measure the loungers or table area, watch the sun during the hours the pool is used most, and check open-canopy clearance around roofs, walls, trees, lighting, fences, and neighboring umbrellas.
Focused Shade · Special Order
10-Foot
A strong fit for more compact shelves and focused shade zones where the sleeve is positioned close to the people or furniture that need coverage.
Versatile Resort Scale
12-Foot
A practical all-around size for paired loungers, Gather table layouts, daybeds, family seating, and broader Baja shelves. Select colors may be stocked.
Maximum Coverage
14-Foot
Created for expansive Baja shelves, pool decks, patios, and large entertaining spaces where the site can accommodate the canopy diameter, height, clearance, and added leverage.
Explore current configurations at BajaMate Shade Pool Umbrellas .
Submerged vs Dry-Side Hardware
Why does the mounting material change when the sleeve stays underwater?
The umbrella canopy can be removed, but the hardware installed at or below the waterline lives in a much harsher environment. Match the mounting material to the exposure rather than treating every pool, deck, and patio installation the same.
Full-Time In-Pool
316 stainless steel.
Use BajaMate 316 stainless steel Foundation and Anchor hardware for applications intended to remain submerged full time, with normal cleaning and balanced pool water.
Deck / Patio / Splash Zone
Aluminum.
BajaMate aluminum mounting products are intended primarily for decks, patios, hardscape, landscape, and temporary splash-zone or occasional water exposure.
Foundation Education
See why the hidden sleeve matters to everything above it.
The sleeve is the permanent part of the system. Choosing and maintaining the right foundation is what makes the removable Anchor, umbrella, and table useful.

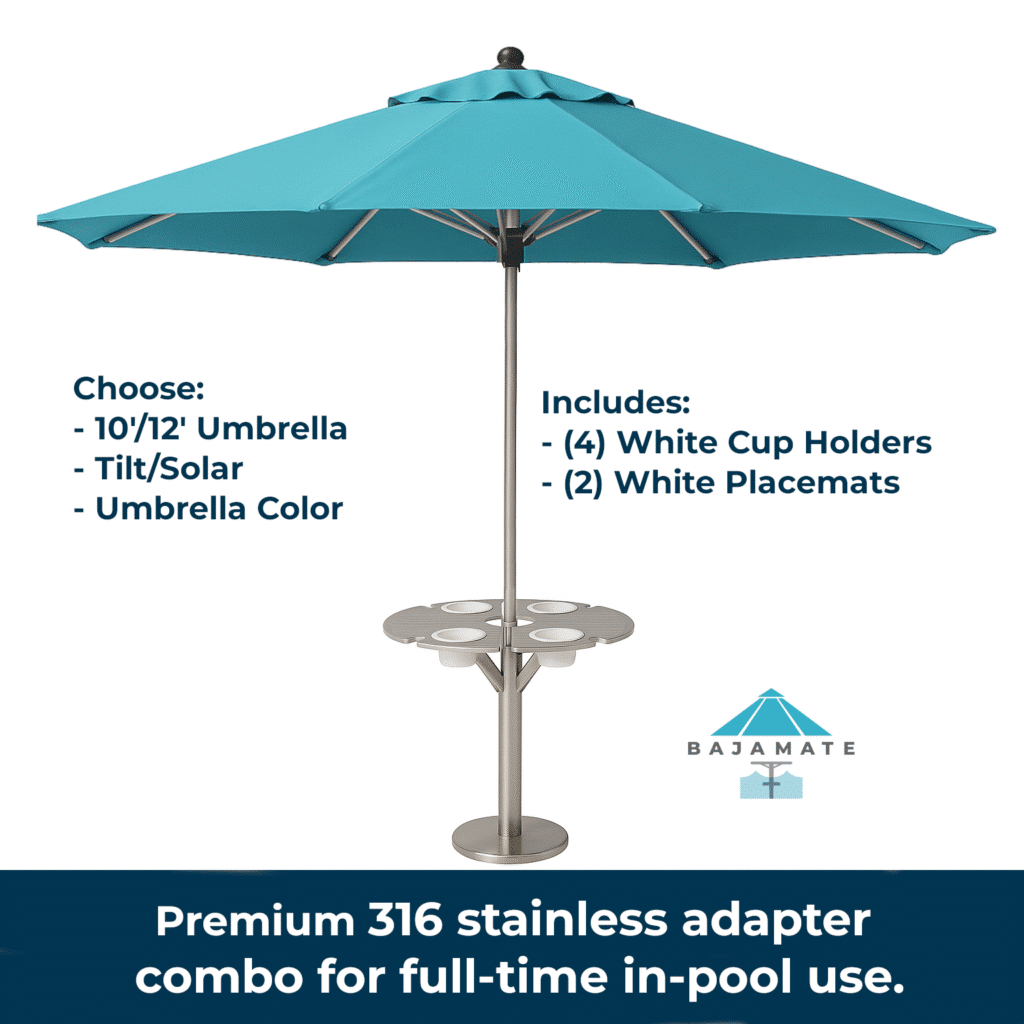

Shade + Gather
Can the same Anchor support an in-pool table and umbrella?
Yes. One of the reasons to create the raised BajaMate connection is that the same mounting architecture can become more than an umbrella holder. Compatible Gather table configurations mount around the Anchor to create a stable place for drinks, snacks, conversation, and entertaining while the umbrella provides shade above.
One Mounting Point
Turn the sleeve into an in-pool destination.
The sleeve provides the foundation, the Anchor raises the usable connection, the Gather table adds table space, and the umbrella creates the shade footprint.
Explore Gather TablesBefore You Order
What should you measure for a sleeve-mounted pool umbrella?
A useful recommendation starts with the mounting point. Collect the dimensions that determine whether the sleeve can be used directly, adapted with an Anchor, or replaced before choosing the umbrella above it.
Sleeve Opening
Measure the inside opening.
Measure the usable inside diameter or opening after removing the cap and debris.
Usable Depth
Measure how far the mount can actually enter.
Account for debris, obstructions, recession, damage, and the true usable depth.
Water Depth
Measure water at the sleeve location.
Water depth helps determine whether an 18″ or 26″ Anchor is the better starting point.
Shade Footprint
Measure what actually needs shade.
Include loungers, Gather table, seating, daybeds, and the sleeve’s position within the zone.
Clearance
Map everything around the open canopy.
Check rooflines, fences, trees, pool features, lighting, walking paths, and neighboring umbrellas.
Photos
Show the sleeve and the whole shelf.
Send close-ups plus wider photos showing the waterline, furniture, pool edge, and surrounding space.
For third-party umbrella fitment, also measure the straight lower-pole diameter. BajaMate Anchor configurations support compatible round poles up to 2.00″ outside diameter maximum.
Sleeve-Mounted Umbrella FAQ
Common questions about pool sleeves, Anchors and in-pool umbrellas.
These answers focus on sleeve-mounted systems. For comparisons with floating and weighted-base options, use the broader pool umbrella buying guide.
Can I put a smaller umbrella directly into my pool sleeve?
Yes, when the straight lower pole fits the sleeve correctly and the sleeve is structurally usable. A direct-fit smaller umbrella can be an excellent simple solution when its shade footprint is enough for the space.
Why would I add a BajaMate Anchor instead?
The Anchor uses a compatible existing sleeve as the foundation, then creates a larger, raised mounting point above it. That is useful when you need a larger compatible pole, additional mounting height, broader shade, or BajaMate accessories.
Does the Anchor replace the existing plastic pool sleeve?
No. The Anchor inserts into a compatible existing sleeve. If the sleeve is cracked, loose, crushed, badly misaligned, or otherwise unsuitable, address the foundation before installing the Anchor and umbrella above it.
What umbrella pole size fits a BajaMate Anchor?
Compatible BajaMate Anchor configurations support straight, round umbrella poles up to 2.00 inches outside diameter maximum. Reducer rings help center several common smaller pole diameters.
Should I use an 18-inch or 26-inch Anchor?
The 18-inch Anchor is generally best for a single-step-down Baja shelf or shallower installation. The 26-inch Anchor is generally best for a two-step-down shelf or deeper water where more mounting height is needed.
What size umbrella works best with a sleeve-mounted system?
Choose the canopy around the occupied shade zone and site clearances. BajaMate offers 10-foot, 12-foot, and 14-foot shade configurations, with 12 feet serving as a strong all-around size for many paired-lounger and Gather table layouts.
Can aluminum Anchor hardware stay underwater full time?
BajaMate aluminum mounting products are intended primarily for decks, patios, hardscape, landscape, splash-zone, or temporary water exposure. Use 316 stainless steel for BajaMate mounting hardware intended to remain permanently submerged.
Can the same Anchor be used with a Gather table?
Compatible Gather table configurations mount around the same BajaMate Anchor system, allowing the sleeve location to become a combined shade and table destination.
What if I am still deciding between a sleeve, floater and weighted base?
Use the Sun Shelf & Baja Shelf Pool Umbrella Buying Guide. That page compares the major mounting approaches. This page is intentionally focused on sleeve-mounted systems.
Build the System
Choose the part that matches the mounting point you already have.
Existing Sleeve Upgrade
Anchor Pool Sleeve Adapters
Keep a compatible builder-installed sleeve and create a larger raised mounting point above it.
Explore AnchorsNew or Replacement Mount
Foundation Pool Sleeves
Install a purpose-built metal sleeve for a new pool, remodel, replacement, deck, patio, or landscape.
Explore SleevesOversized Shade
Shade Pool Umbrellas
Choose the canopy after the sleeve, Anchor height, pole fit, shade footprint, and clearances are known.
Explore ShadeAdd Table Space
Gather In-Pool Tables
Build a removable table around the same compatible Anchor connection used by the umbrella system.
Explore GatherUse the Sleeve. Build the Shade.
Keep the mounting point clean and integrated into the pool.
Start with the sleeve that is already there, determine whether direct fit or an Anchor is the right path, then size the umbrella around the Baja shelf you actually use.
